SVANS hot water boiler 12V /24V /48V

The Svans boiler Made in Germany They're always with you, whether in summer or winter. You'll have hot water quickly and won't have to go without. The boilers are robust and powerful. With a durable ABS housing and excellent thermal insulation, the water stays warm for up to 30 hours. The best way to use your battery or solar power efficiently. 12V hot water applications: mobile homes, camping, sales vehicles, 24V boilers, coaches, boats, houses, solar systems. Optionally available with a remote switch and digital temperature display.

Advantages and service of Svans boilers:

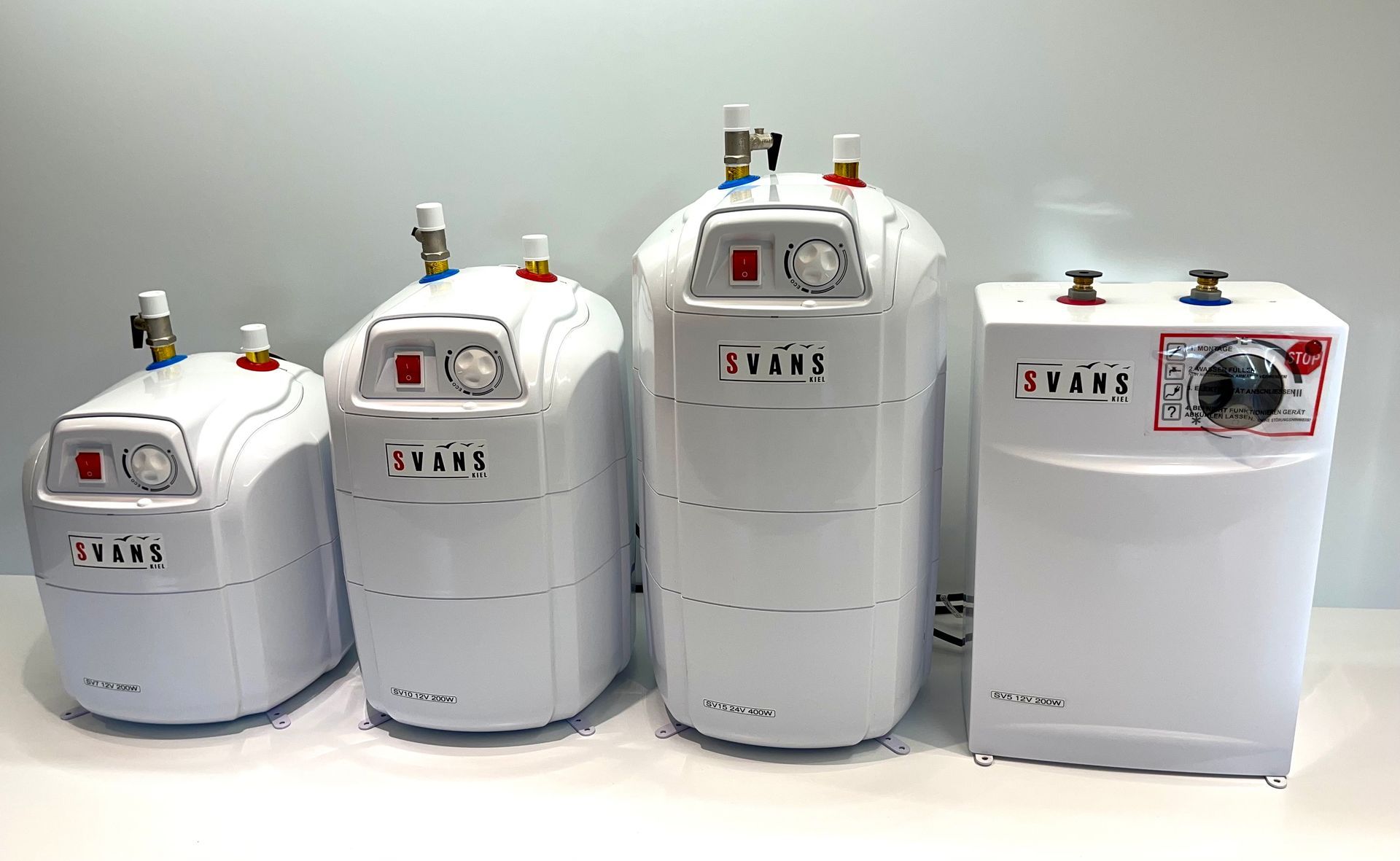

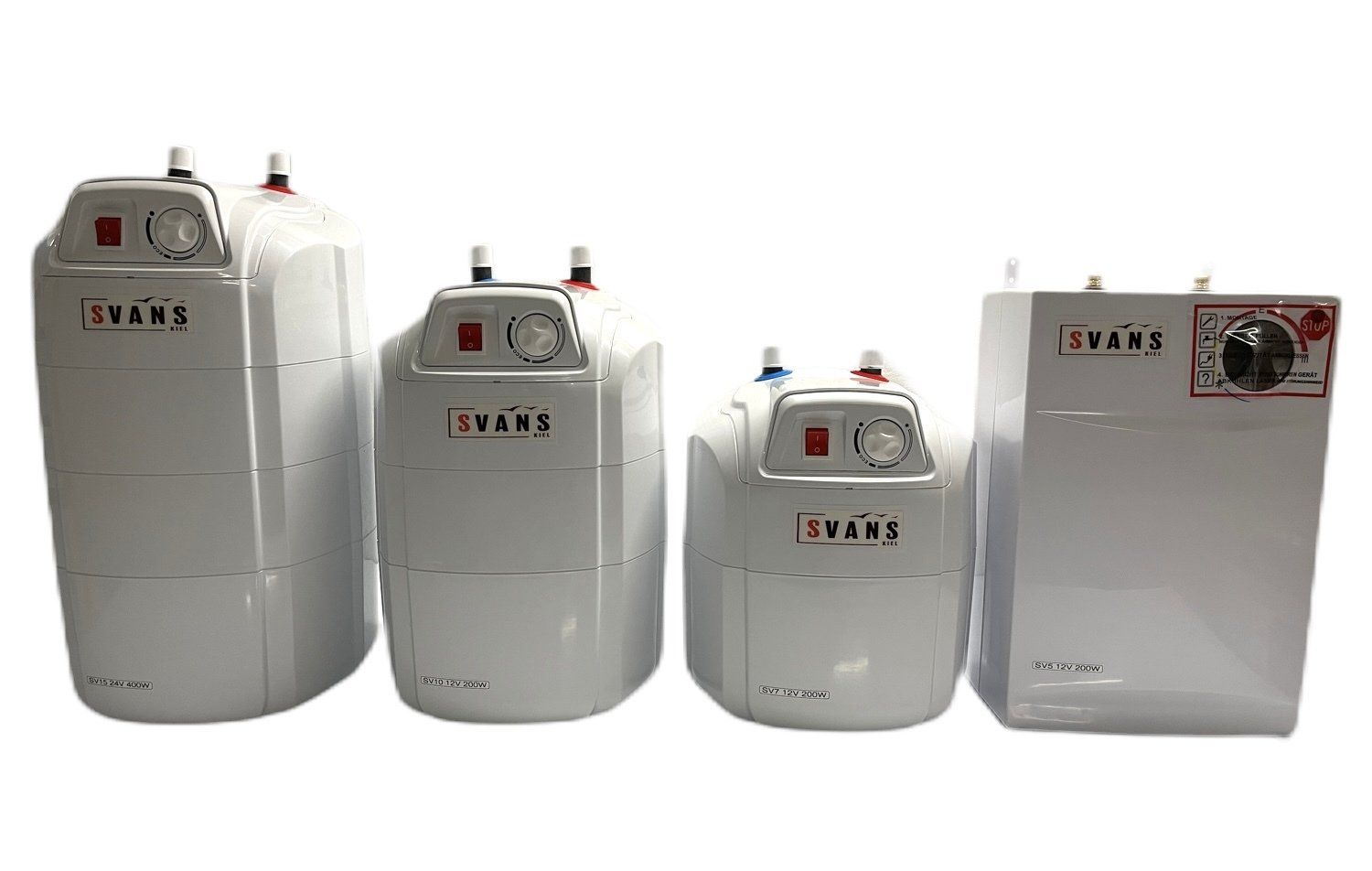

  1. The boilers are small and compact, available in 6 sizes.
  2. Quality, Made in Germany, the devices are manufactured by hand.
  3. Shock-resistant ABS housing with foamed ceramic coated shell
  4. Winter FestivalThanks to the integrated expansion tank, the devices are winter-proof and do not need to be emptied.
  5. Support, we help you: When selecting the right device or with installation, contact us conveniently by phone or email, a qualified employee will be happy to help you if any questions or problems arise.
  6. "Remote switch with temperature display" is available as an option for every pressure-resistant Svans hot water boiler.
  7. New: "SThe "switch output" is now available as an option for every pressure-resistant Svans hot water boiler.
  8. You need an expert opinion on theECE R10 approval (EMC)You can find this at Downloads



    9. Hot water is easy with the hot water 12v boiler: 12v SV5 5L / 12v SV7 7L / 12v SV10 10L or boiler 24v SV10 10L / 24v SV15 15L

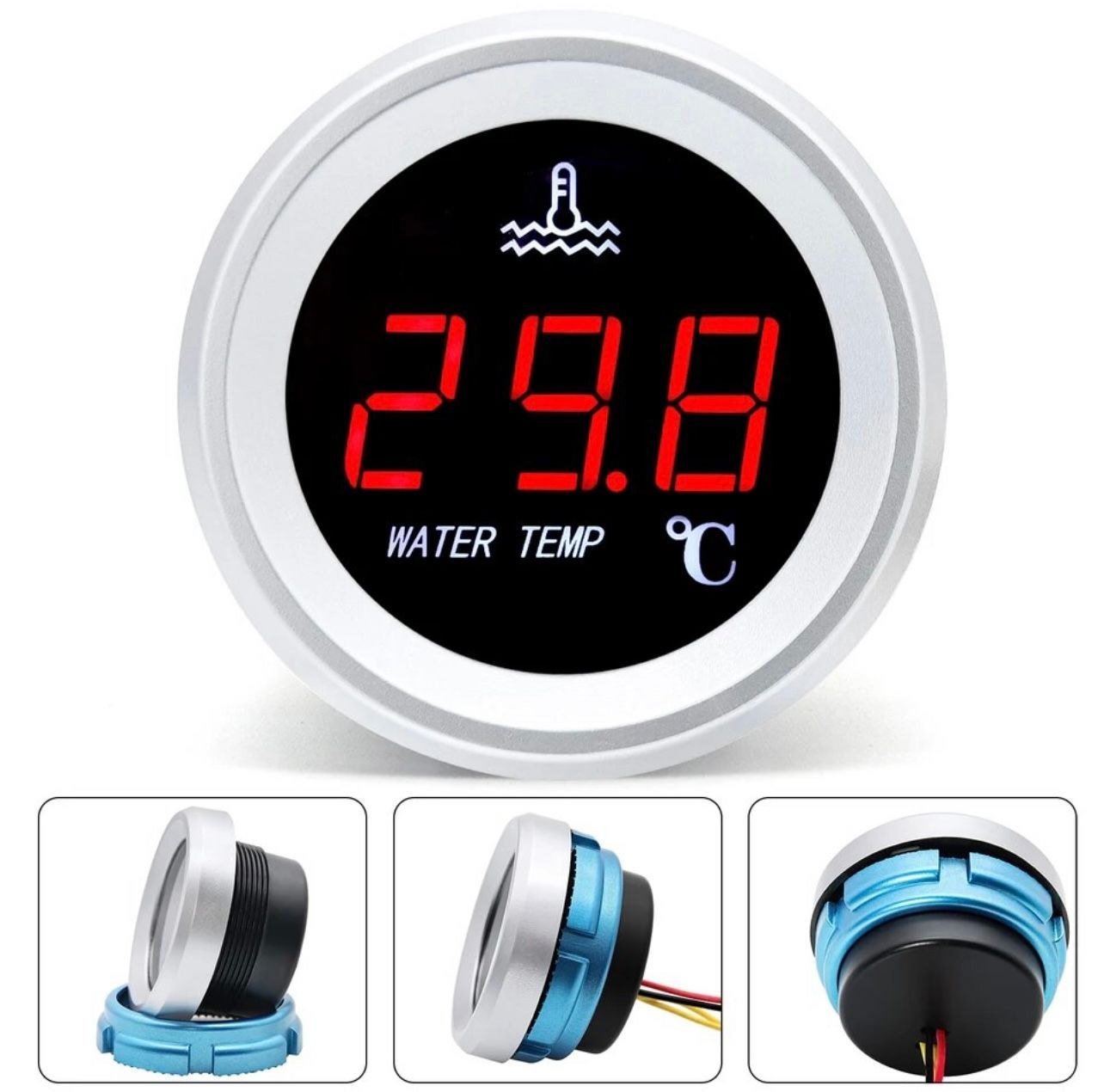

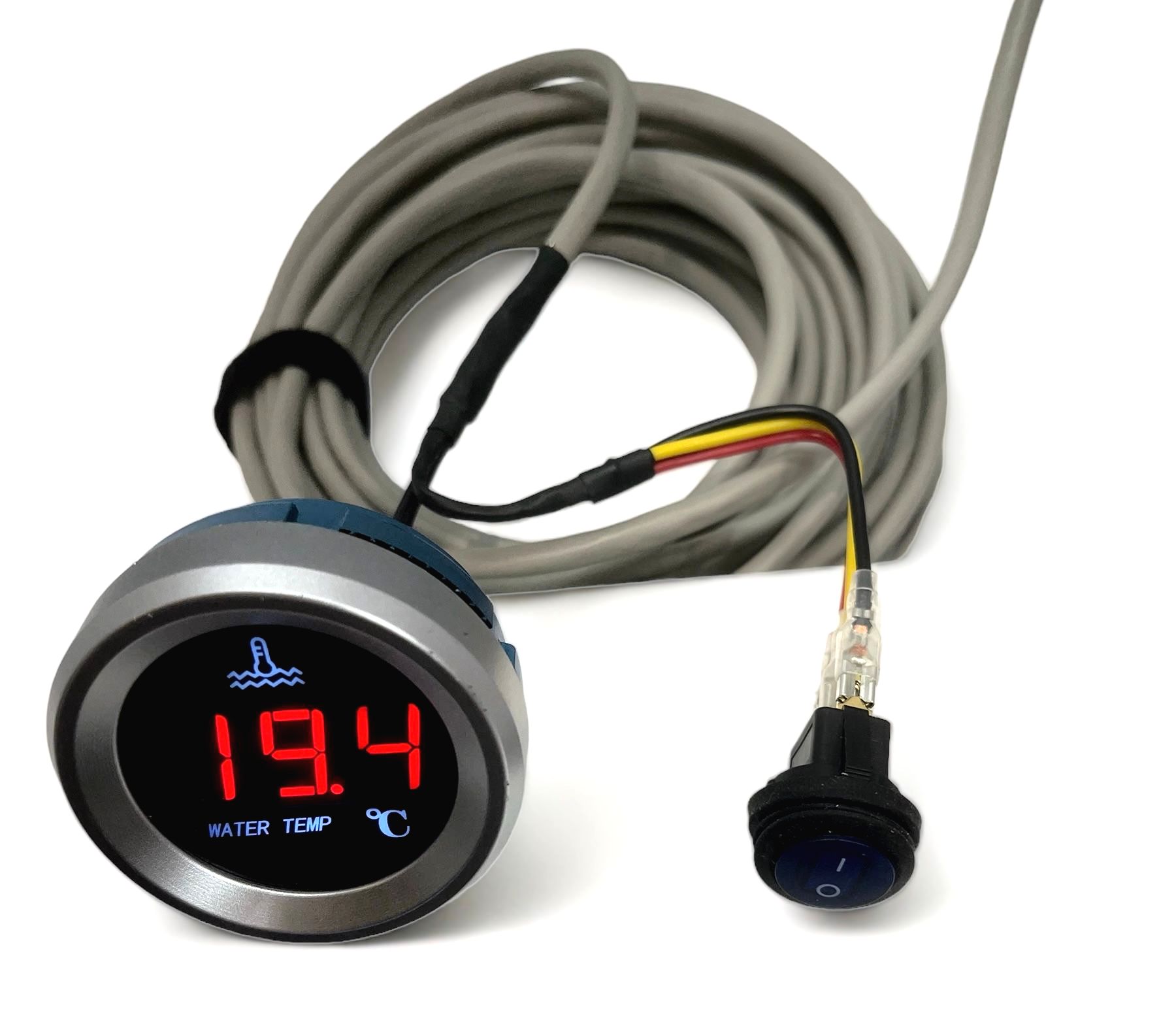

SVANS boiler remote switch with temperature display

The remote switch installation kit with temperature display is available as an option for every pressure-resistant Svans hot water boiler

Fernschalter mit Digitaler Temperaturanzeige

The remote switch set with temperature display can be used for any Pressure-resistant Svans boiler It can be ordered. It is simply plugged into the back of the device using a plug-in connection. An additional power supply is not necessary; the cable is 8 meters long, so the remote switch with temperature display can be conveniently mounted in the right place. Thanks to the integrated load switch/relay in the device, only one control voltage is sent to the remote switch and temperature display. This is very efficient; the power consumption in standby mode is 0.2 W.

How it works:


By pressing the main switch on the boiler the illuminated temperature display and switch are activated (power consumption 0.2 W). The boiler can now be switched on and off using the remote switch. When the remote switch is operated the indicator light in the switch lights up and signals that the device is in heating mode. As soon as the set temperature on the temperature controller on the device is reached the indicator light in the remote switch goes out even though the switch is operated. The set temperature has been reached. As long as the remote switch remains operated the device will maintain the set temperature by briefly operating the heating element (power consumption when maintaining the temperature approx. 8-12 W).

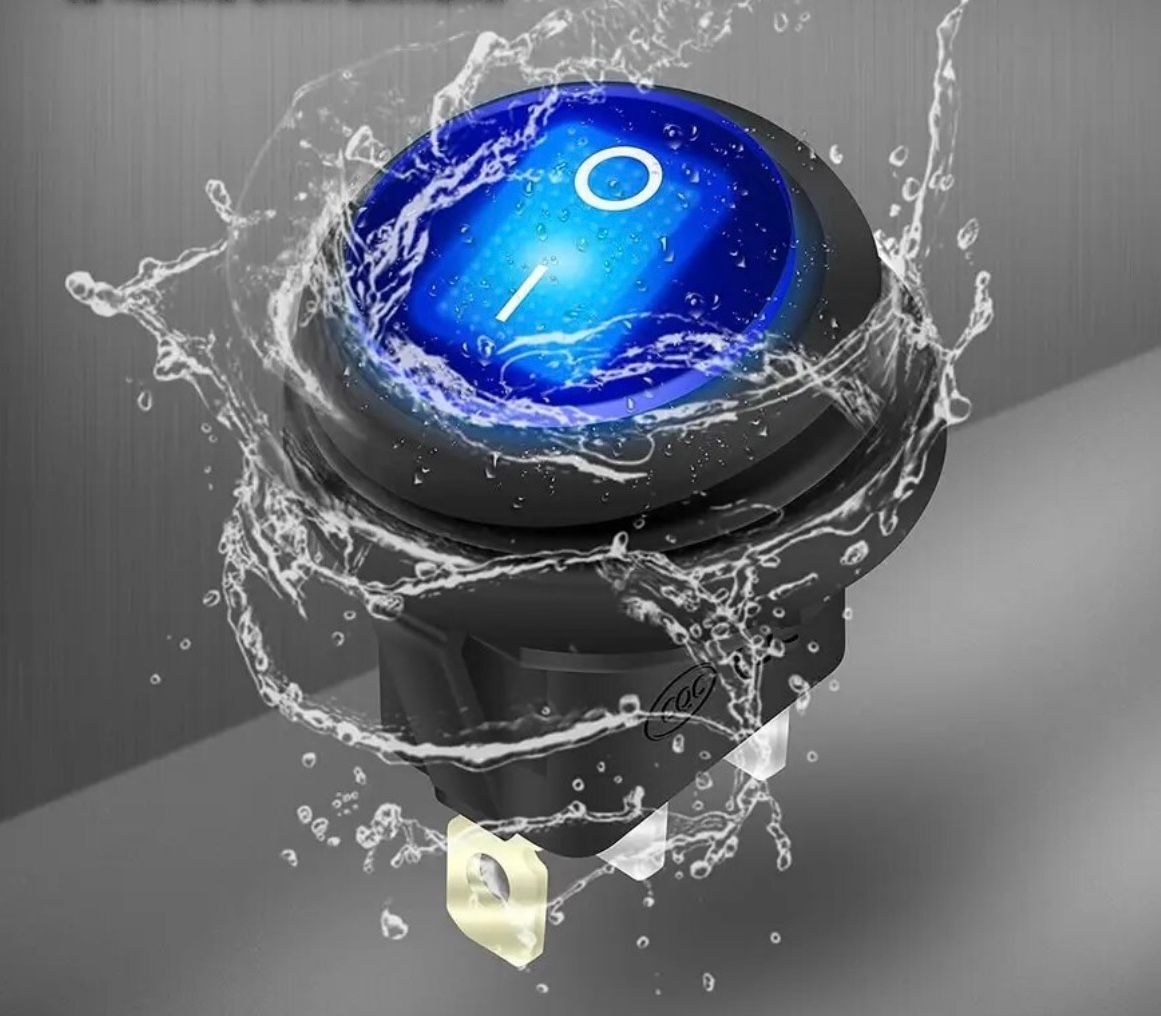

The remote switch included in delivery can be replaced by any other switch, or a switching output from an existing control panel can be used.

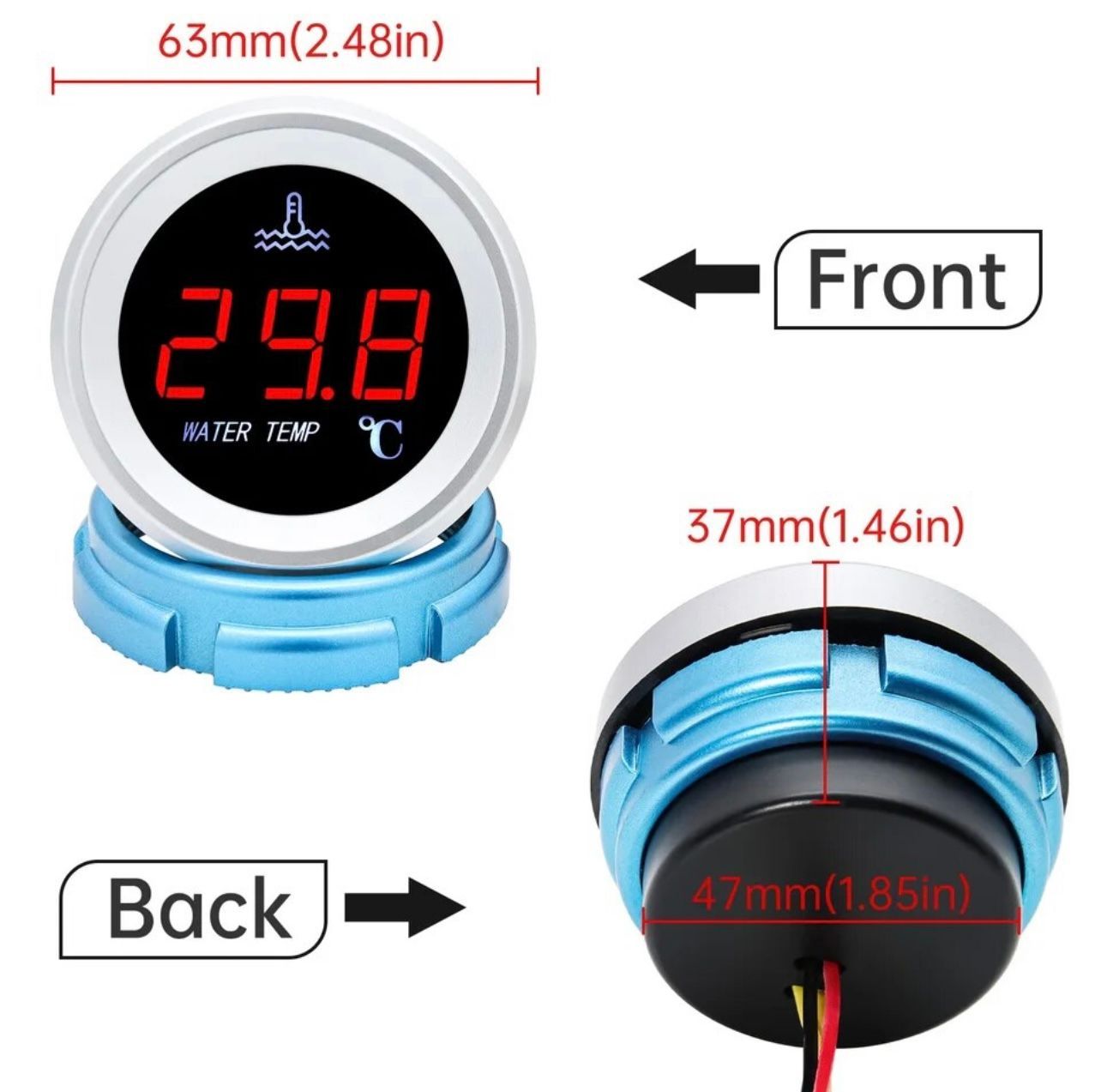

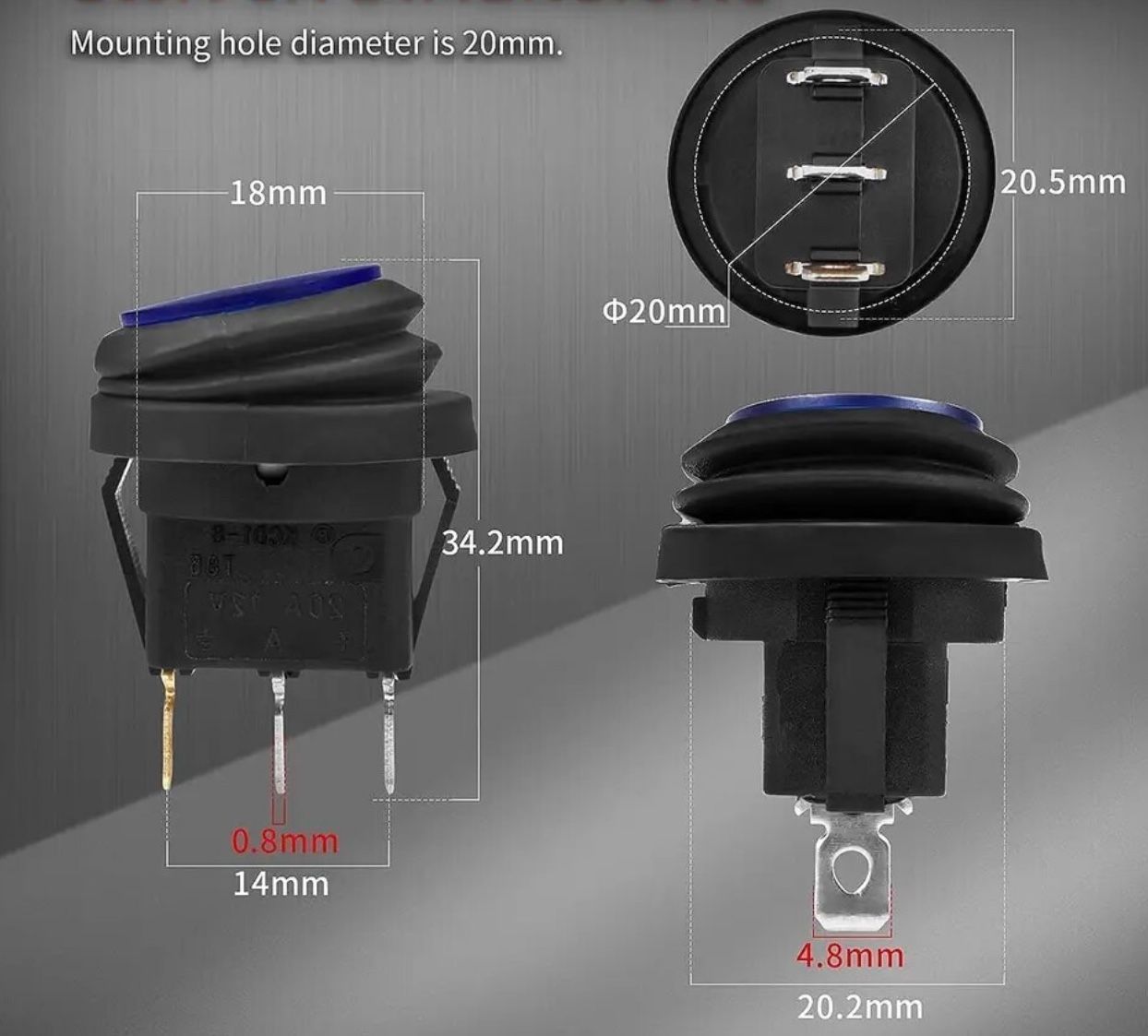

Installation diameter Switch: 20mm // Temperature display: 52mm

Info: It is not possible to connect the remote switch kit to a boiler that was delivered without one, but we can retrofit it if you send us your device.

 Liferumfang:   - Fernschaltersatz mit beleuchtete Digitale Temperaturanzeige  mit  8 Meter Kabel

                             -Bedinungsanleitung





Preis: 43,90 Euro  Verfügbar im Shop

To the shop

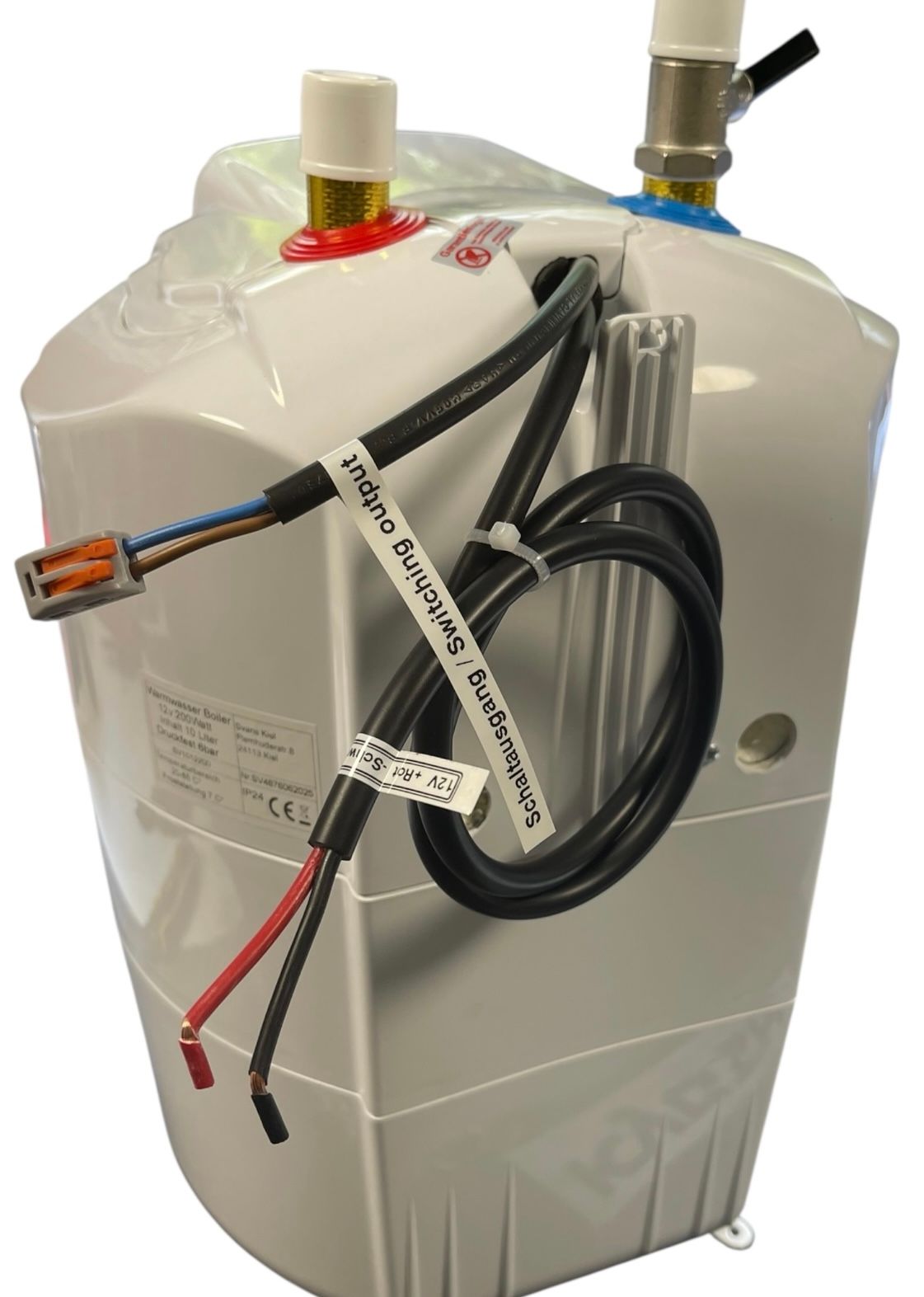

SVANS boiler Switching output

The switching output is available as an option for every pressure-resistant Svans hot water boiler


Function of switching output:


The cable of the switching output can be extended as required. A load switch/relay is integrated into the device. This allows only a small switching voltage to be controlled via the switching output. This allows the boiler to be switched on and off very efficiently remotely. You can use any switch for this purpose, or use an existing switch or switching output on your control panel. Control panels from Victron, Votronic, or Ective, for example, are compatible.



The switching capacity is 200 mA

The recommended cable extension for the switching output is: 2x 0.5 to 1 square


Performance diagram Svans boiler

Svans boilers are the most powerful on the market

New

Through a Upgrade was the Heating element through a heating coil The heating coil has a significantly larger surface area than a heating element. This allows for much lower temperatures while still increasing energy output, increasing efficiency and preventing limescale buildup.


-12 volt boiler With a nominal power of 180 watts at 12 volts, the boilers already provide 12.4 V 200 watts. With an average battery voltage of 13 volts, the Power 230 W. At a battery voltage/charging voltage of 13.6 V, the Power 250 W.


-24 volt boiler With a nominal power of 360 watts at 24 volts, the boilers already provide 24.8 V 400 watts. With an average battery voltage of 26 volts, the Power 440 W. At a battery voltage/charging voltage of 27.8V, the Power 490 W.



The new Svans boilers SV30 and SV50 24V 400W for boats, yachts and solar systems

The new 30- and 50-liter wall-mounted Svans hot water boilers can be operated independently of electricity using a solar panel, generator, or battery. These units feature excellent thermal insulation, efficiency, and economy. The water stays hot for up to 40 hours. Optionally available with a remote control and digital temperature display.

Custom-made products.

We manufacture individual devices for you with the desired voltage and power!
