The remote switch set with temperature display can be used by anyone Pressure-resistant Svans boilercan be ordered. It is simply plugged into the back of the device using a plug-in connection. An additional power supply is not necessary, the cable length is 8 meters so the remote switch with temperature display can be easily mounted in the right place. Thanks to the integrated load switch/relay in the device, only one control voltage is sent to the remote switch and temperature display, which is very efficient in terms of power consumption in standby mode is 0.2 W.
Functionality:
By pressing the main switch on the boiler, the illuminated temperature display and switch are activated (power consumption 0.2 W). Now you can switch the boiler on and off using the remote switch. When the remote switch is pressed, the indicator light in the switch lights up and signals that the device is in heating mode As soon as the set temperature on the temperature controller on the device is reached, the indicator light in the remote switch goes out even though the switch is activated, the set temperature has been reached. As long as the remote switch remains activated, the device will maintain the set temperature by briefly pressing the heating element(Power consumption when maintaining the temperature approx. 8-12 W.)

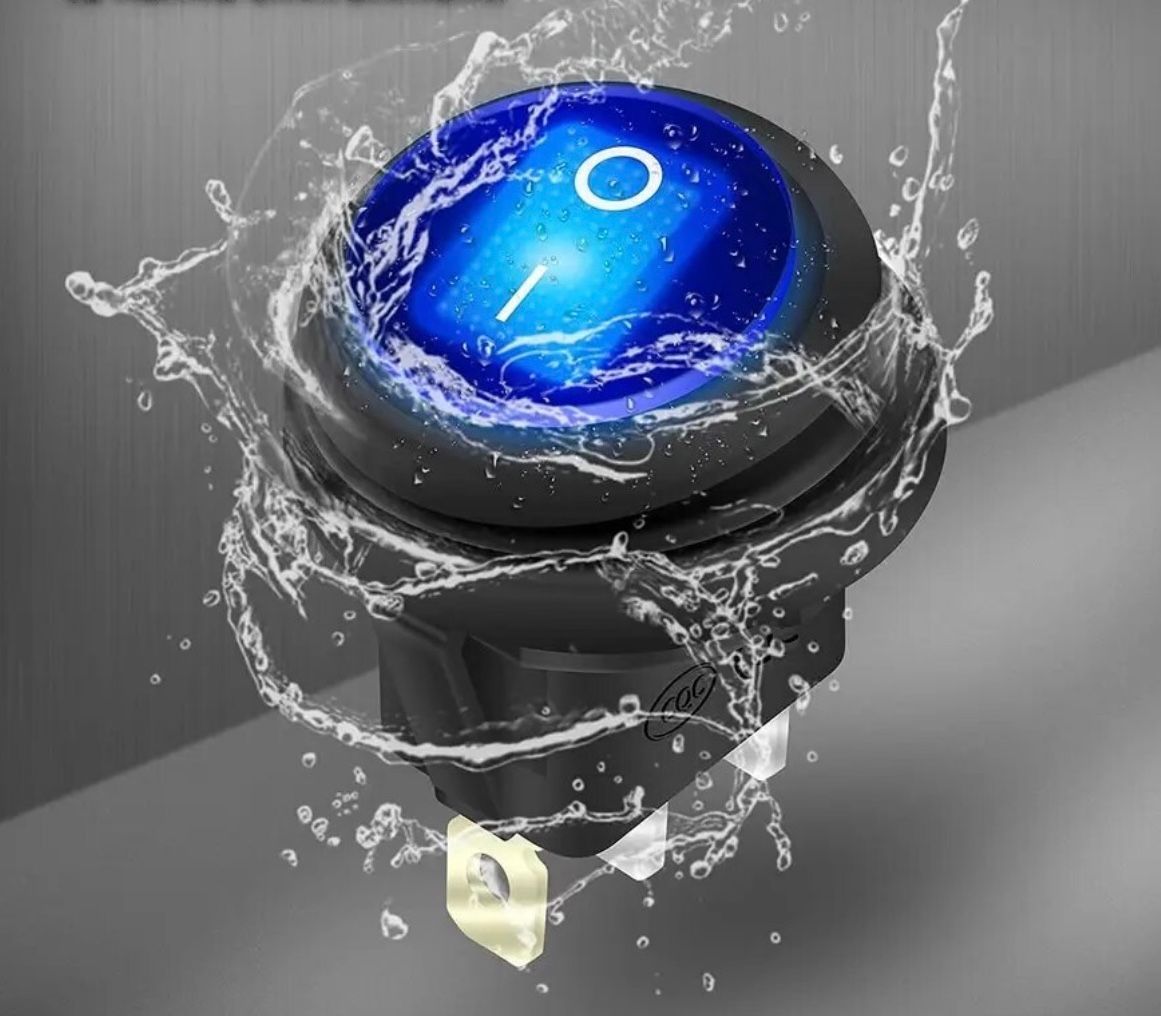

The remote switch included in the scope of delivery can be replaced by any other switch; a switching output from an existing control panel can also be used.

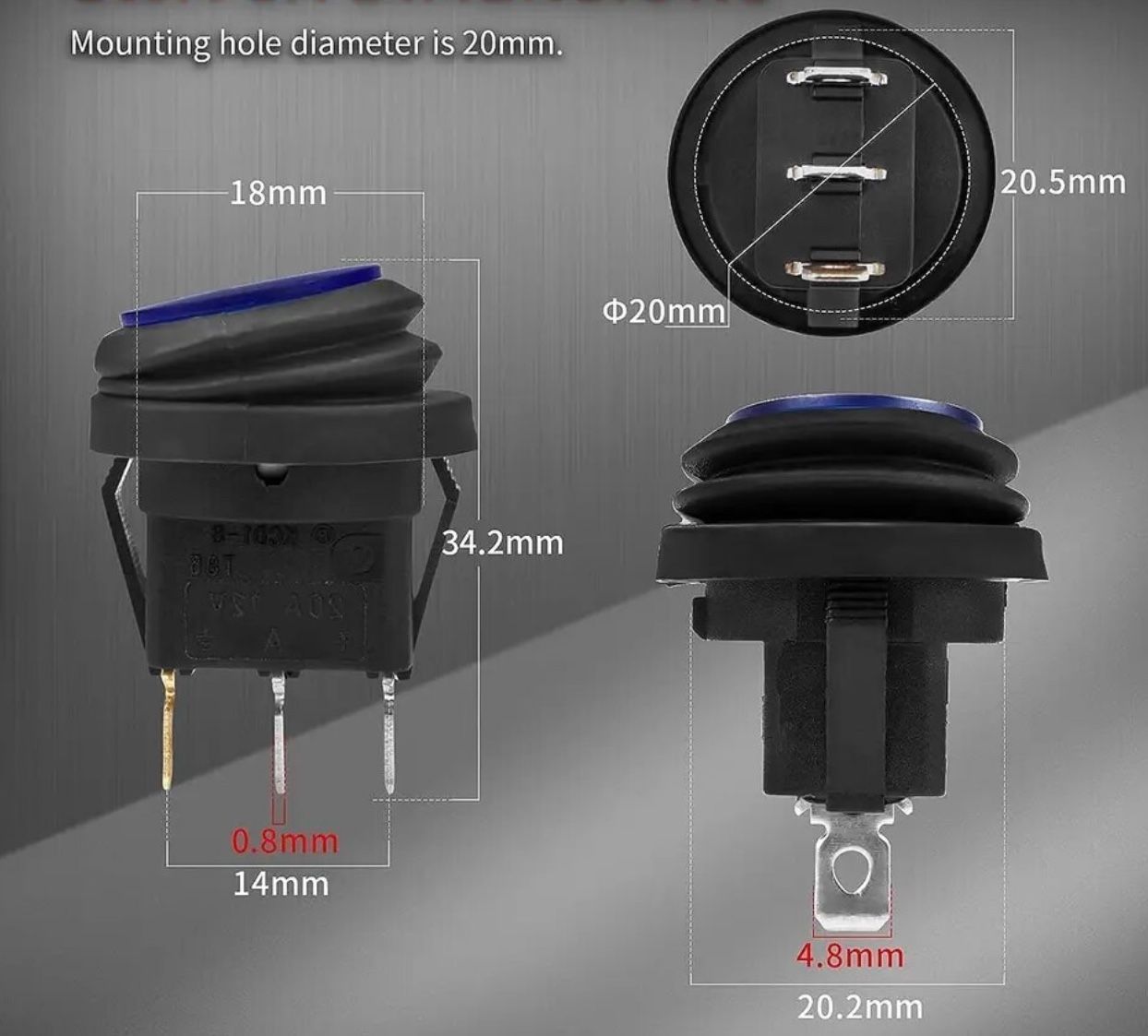

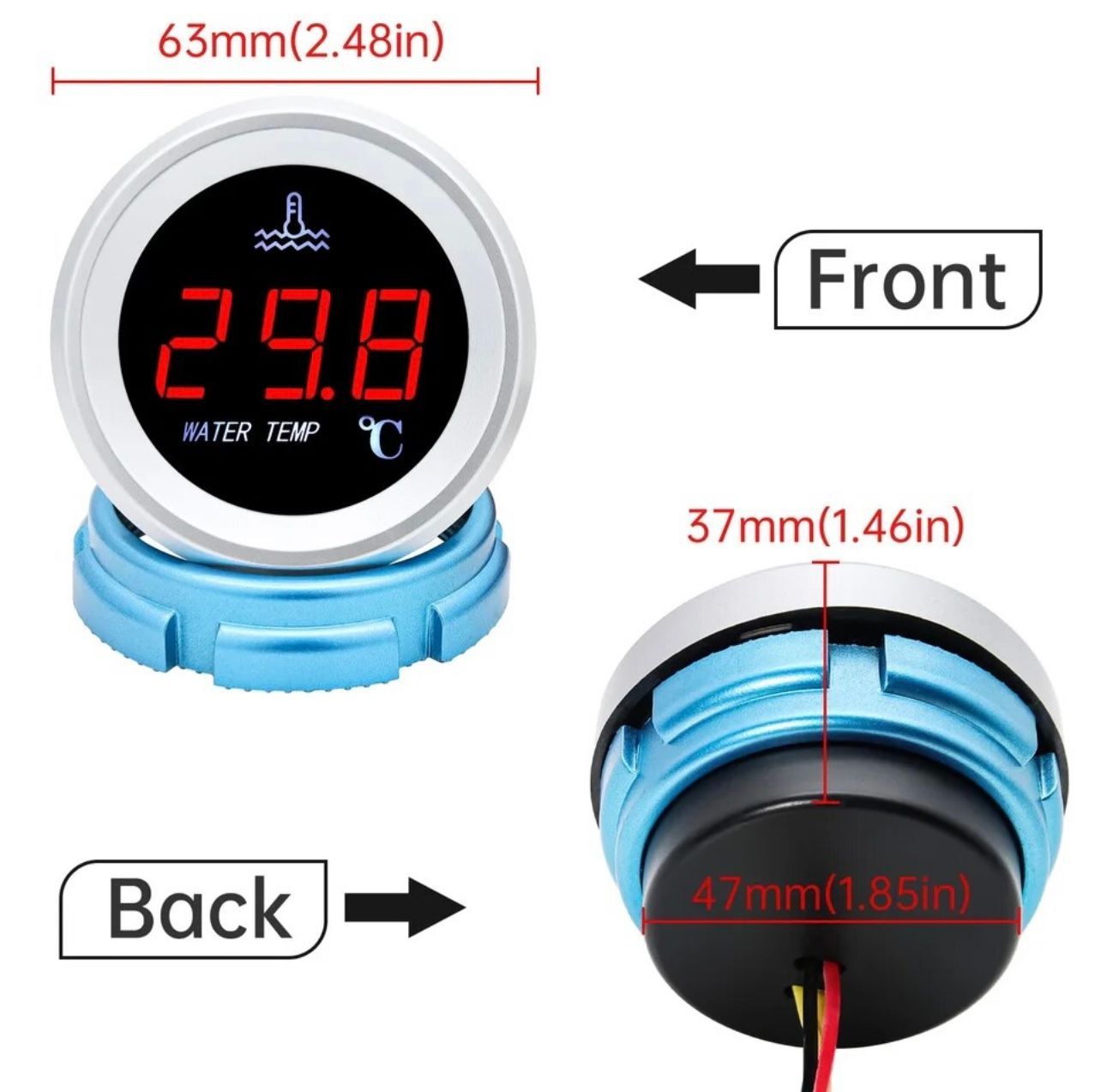

Installation diameter
Switch: 20mm // Temperature display: 52mm
